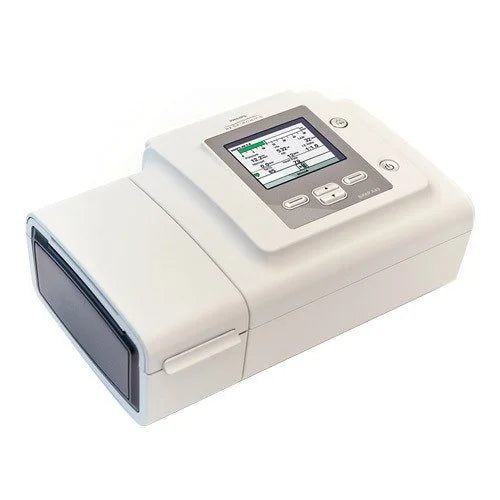

BiPAP A40 Bi-level Portable Ventilator (with mask)

BiPAP A40 Bi-level Portable Ventilator (with mask)

Dhs. 22,999.00 AED
Dhs. 22,999.00 AED
Sale Sold out

BiPAP A40 Bi-level Portable Ventilator (with mask) Features

  • The AVAPS-AE mode is designed to promote long term therapy compliance for patients who have obstructive sleep apnoea and other disorders associated with chronic respiratory insufficiency
  • The BiPAP A40 also includes the well-known and clinically proven Auto-TRAK algorithm with an improved leak compensation technology to accommodate respiratory changes, while improving patient comfort throughout the therapy.
  • BiPAP A40 can provide autonomy and increased support to patients, thanks to its specifically designed battery module. It provides 5 hours of uninterrupted back-up power, giving patients access to respiratory support during daily activities.
  • The devices internal memory and an SD card can record up to 1 year of ventilation therapy data
  • The colour user interface is designed for intuitive operation.

Specifications of BiPAP A40 Bi-level Portable Ventilator (with mask)

Ventilation modes CPAP, S, S/T, PC, T
Weight 2.1 Kgs (with power supply)
DC power source 12 VDC, 5.0 A (external battery), 24 VDC, 4.2 A (power supply)
Size 21.6 cm W x 19 cm L x 11.5 cm H
IPAP 4 – 30 cm H₂O
Hybrid ventilation AVAPS (Average Volume Assured Pressure Support)
AVAPS rate 0.5 to 5 cmH2O/min
EPAP 4 – 25 cm H₂O
Battery back-up 11 hours at IPAP 15 / EPAP 4 cm H2O and 12 BPM
Inspiratory time 0.5 – 3 sec.
Target tidal volume (when AVAPS enabled) 200 – 1500 ml
Rise time 1 (100 ms) – 6 (600 ms)
Breath rate 0 – 40
Polygraph and polysomnography connections Direct connection to Alice PDx and Alice6 PSGs, AOM to connect to most PSG systems
Triggering and cycling Digital Auto-TRAK algorithm
Noise level 30 dBA at 10 cmH2O
Humidification System One humidity control and ‘Dry Box’ technology
Alarms Patient disconnection, Apnoea, Low minute ventilation, Low tidal volume with AVAPS only), High respiratory rate
Monitoring Pressure, tidal volume, minute ventilation, respiratory rate, Leak, I/E ratio
Data management EncorePro 2 and DirectView software<br>Compatible with oximetry module, Advanced detection of residual respiratory events<br> (Apnoea/Hypopnea Index, Obstructed Airway Apnoea, Clear Airway Apnoea, Hypopnea, Periodic Breathing, RERA, Large Leak and Snore)
Remote control Compatible with PC Direct
