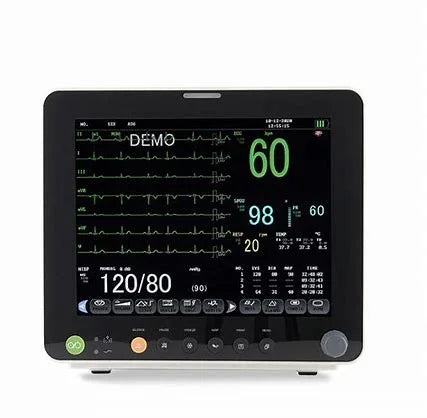

Multi-Parameter Patient Monitor - LCX-PM12F

Multi-Parameter Patient Monitor - LCX-PM12F

•  Unique accessory management cabinet
• 12.1-inch high-resolution colour TFT display
• USB interfaces
• 3 Working Modes: Monitoring, Surgery, and Diagnosis

Description:

• Unique accessory management cabinet
• 12.1-inch high-resolution colour TFT display
• USB interfaces support easy software upgrades and data transfer
• Three Working Modes: Monitoring, Surgery, and Diagnosis.
• Simple and friendly operating display interface.
• Multi-display modes suitable for different applications:
• Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend.
• Built-in high-capacity battery for up to 3 hours of continuous work
• VGA output for external display

Specification:

TECHNIQUE SPECIFICATION:

ECG:

• Lead Mode: 5 Leads (I, Il, III, AVR, AVL,AVF, V)
• Gain: 2.5mm/mV. 5.0mm/mV. 10mm/mV. 20mm/mV
• Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
• Resolution: 1 BPM
• Accuracy: ±1%
• Sensitivity: >200 uV(Peak to peak)
• ST measurement range: -2.0 ~ +2.0 mV
• Accuracy: -0.8mV~+0.8mV: +0.02mV or +10%, which is greater
• Other Range: unspecified
• Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

Bandwidth:

• Diagnostic: 0.05~130 Hz
• Monitor:0.5~40 HZ
• Surgery:1~20 HZ

SPO2:

Optional Parameters:

• Measuring Range: 0 ~ 100 %; Resolution: 1%
• Accuracy: 70% ~ 100% (‡2 %)
• Pulse Rate: 20-250 BPM; Resolution: 1 BPM; Accuracy: +3 BPM
• Recorder ( Printer)
• Central monitoring system
• Dual IBP
• Etco2
• 12-lead ECG:
• Nellcor Sp02;
• Sun Tech NIBP.

NIBP:

Method: Oscillometry

• Measure mode: Manual, Auto, STAT
• Unit: mmHg, kPa
• Measure and alarm range:
• Adult Mode
• SYS 40 ~ 280 mmHg
• DIA 10 ~ 225 mmHg
• MEAN 20 ~ 240 mmHg

Paediatric Mode:

• SYS 40 ~ 220 mmHg
• DIA 10 ~ 160 mmHg
• MEAN 20 ~ 170 mmHg

Neonatal Mode:

• SYS 40 ~ 135 mmHg
• DIA 0 ~ 100 mmHg
• MEAN 20 ~ 110 mmHg
• Resolution: 1mmHg
• Accuracy: ‡5mmHg

TEMP:

• Measure and Alarm Range: 0 ~ 50℃
• Resolution: 0.1℃
• Accuracy: +0.1℃

Standard Parameters:

• ECG. RESP, TEMP, NIBP, SPO2, PR

RESP:

Method:

• Impedance between RA-LL or RALA

Measurement Range:

• Adult: 10 ~ 120 BrPM
• Neonatal / Paediatric: 7 ~ 150 BrPM
• Resolution: 1 BrPM
• Accuracy: ±2 BrPM

Standard Configuration:
