Astral 150 Portable Ventilator (with mask) – ResMed
Invasive & Non-invasive Portable Ventilator/BiPAP-ST

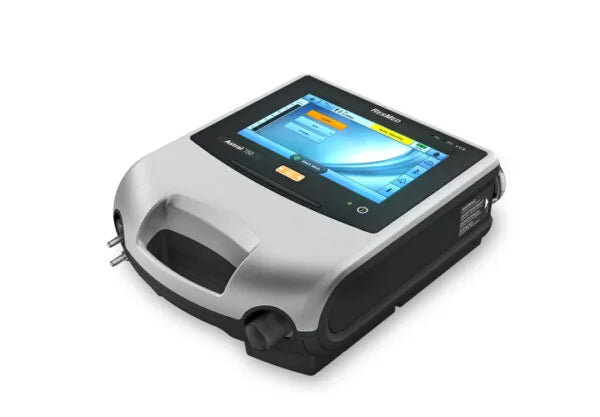

Astral 150 Portable Ventilator (with mask) – ResMed Comes with all the standard features of Astral 100, plus FiO2 monitoring and double limb circuit capabilities. Through the ResMed Connectivity Module (RCM), Astral can also connect to Air View, a ResMed patient monitoring tool, giving you access to key patient data too. in addition, Offers an impressive power-to-weight ratio.
In the same way, Easy learning curve for clinicians and caregivers’ Responsive algorithms deliver adaptive, personalized ventilation as the disease progresses.
Features
- Firstly, ResMed Astral features remote monitoring capabilities that provide peace of mind for you and your patients while they are at home.
- Secondly, Astral is easy to operate due to its intuitive interface and user-friendly features, including big button technology, program naming options and quick setup assistant.
- In addition, Home to ResMed’s NIV technologies and Astral helps you provide ventilation that is comfortable, synchronized and responsive to each patient’s respiratory needs.
Specifications of Astral 150 Portable Ventilator (with mask) – ResMed
As a result, there are some specifications too.
| Valve circuit therapy: CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS | Yes |
| Leak circuit therapy: CPAP, (S)T, P(A)C, iVAPS3 and optional AutoEPAP | Yes |
| Mouthpiece ventilation therapy: (A)CV, P(A)CV, PS/SVt | Yes |
| Manual breath | Yes |
| Sigh breath (recruitment) | Yes |
| Apnoea ventilation | Volume and pressure |
| Pre-set programs | 4 |
| Single circuit with leak | Yes |
| Single circuit with valve | Yes |
| Double circuit | Yes |
| Delivered pressure (cmH2O) |
2–50 (leak circuit) 0–50 (valve circuit) |
| Delivered tidal volume (mL) |
Adult: 100–2500 mL Paediatric: 50–300 mL |
| Respiratory rate |
Adult: Off, 2–50 bpm Paediatric: Off, 5–80 bpm |
| SpO2 monitoring | Optional |
| FiO2 monitoring | Yes |
| On screen |
30 days of summary data Real-time pressure and flow (25 Hz) |
| ResScan (via download) |
365 days of summary data 7 days of detailed data |
| AirView (RCM required) |
365 days of summary data 7 days of detailed data |
| Weight | 7.1 lbs (3.2 kg) |
| Dimensions (L x W x H) | 285 mm x 215 mm x 93 mm |
| Internal battery | Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8 hours of backup power |
| Sound power level | 43 ± 3 dBA: as measured according to ISO 80601-2-12:2011 |
| Sound pressure level | 35 ± 3 dBA: as measured according to ISO 80601-2-12:2011 |
